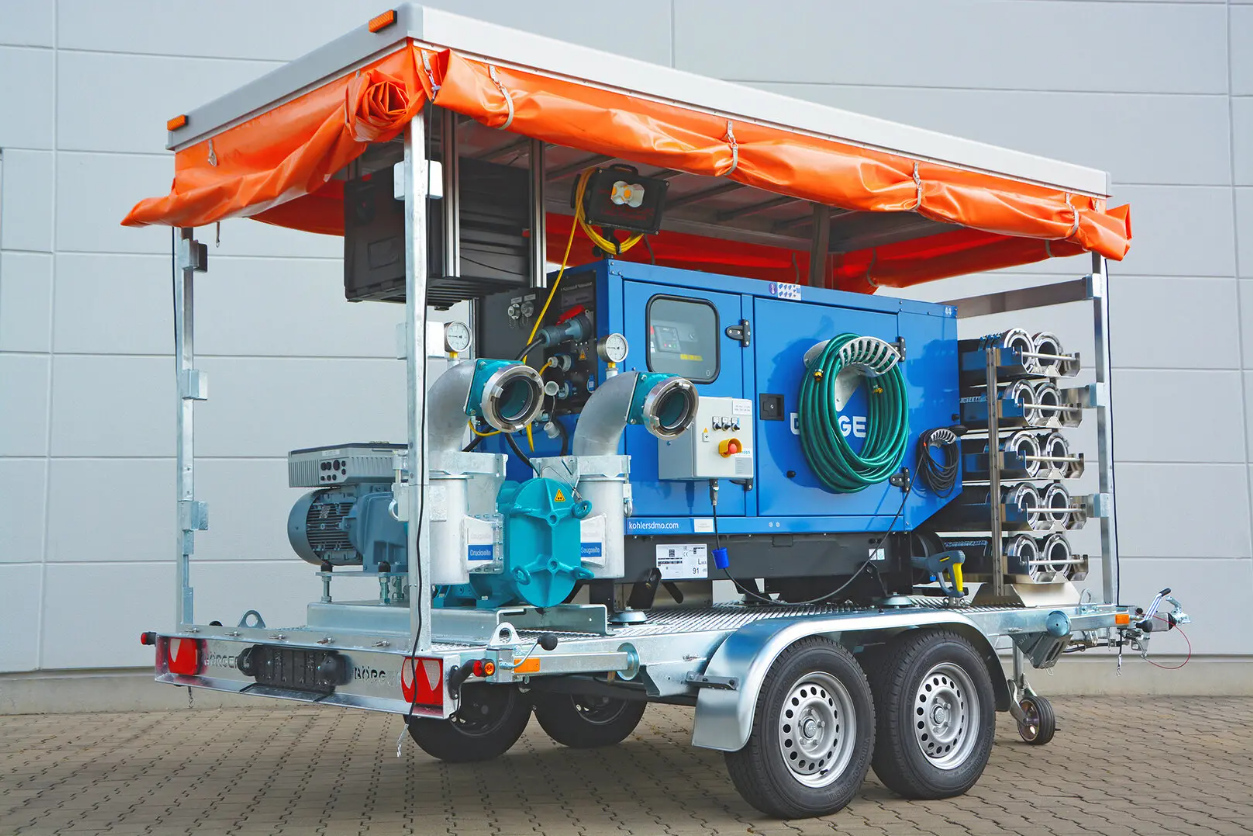

Mobile Raw Water Pump
The compact, low-on-space design, unproblematic pumping in slurp operation, and the possibility to drive a Börger rotary lobe pump by means of different drive options are reasons why our pump is the ideal mobile pump.
Börger mobile pumps are designed and built in line with your needs! Everything from a single source – Börger designs and produces the base frame, the pump technology and the control technology themselves.
Börger mobile units are used for a wide variety of pumping tasks—mounted on a car or truck trailer, as well as on an L-frame or as a hook lift unit.
Whether in an oil refinery, a chemical plant, for sewer rehabilitation, or in flooded areas – there is one thing all mobile units have in common: they are designed and manufactured individually for their field of application.
MANUFACTURED ACCORDING TO YOUR NEEDS
Vehicle Body
Mobile units can for example be installed on
• a car trailer
• a truck trailer
• a steel construction with forklift pockets and/or crane lugs
• an L-frame
• or a roll-off container
Roof Construction
Mobile units are often equipped with a tarp / roof bow construction. With foldable versions, the tarp can be used as weather protection.
If protection against vandalism is required, the pump can be protected by a foldable protective grid.
Drive
Mobile units are usually driven by a combustion engine in order for them to be used as standalone units. However, other drive types are also available.
Many local authorities prefer a combination of a generator and electric motor for their flood pumps. This means that the generator can also be used independently of the pump.
Sound Enclosure
The combustion engine or the entire unit can be equipped with a sound enclosure for use in residential areas.
Control Technology
The control unit is designed according to the customer’s requirements.
• with automatic operation with fill level sensor
• control technology with remote monitoring function
• visualized pump control via smartphone, tablet, or PC and so on
ATEX-Compliant
All Börger mobile units can be constructed in line with ATEX requirements.
In addition to the pump itself, we also provide an ATEX-compliant control cabinet for your mobile pump.
With Macerating Unit
When conveying solids-laden media, it may be advisable to use a macerator.
Storage Compartments
Depending on the customer's requirements, the mobile unit is fitted with storage compartments for hoses or other equipment.
A large variety of options is possible here as well.
BENEFITS
➱ Suitable for standalone use: Driven by a combustion engine or a combination of generator and electric motor, the mobile pumps are suitable for standalone use in virtually any situation.
➱ Powerful: Flow rates up to 6,400 gpm (1,440 m³/h / 24,000 l/min).
➱ Variable flow rate: The flow rate can be adapted to the specific pumping task via the pump speed. The high efficiency is maintained at every speed.
➱ High-quality control technology: The control technology is individually adapted to the fields of application and customers' requirements.
➱ Constant flow rate even in high-pressure situations: Even in high-pressure situations (e.g. due to long pumping distances), the flow rate of Börger rotary lobe pumps remains constant.
➱ Resistant to solids, self-priming and capable of running dry for a short time: These capabilities make the pumps suitable for universal use.
➱ Ready for use right away: The Pumps are ready for use straight away − connect the hoses and start the drive.
➱ Customized design: Each mobile unit is configured and built individually.
➱ User friendly: The pumps are very easy to operate.
➱ Very easy to maintain due to MIP (Maintenance in Place): The pump can be maintained within a few minutes at any given location.
